Description
Product Information
Age Range:1-5 years
Dimensions/Weights
Product Height:
- Seat unit: 15.7″
- Hi-low chassis: 12.4″
- Easy chassis: 10.4″
Product Width:
- Seat unit: 14.6″
- Hi-low chassis: 21.3″
- Easy chassis: 20.7″
Product Length:
- Seat unit: 14.6″
- Hi-low chassis: 25.2″
- Easy chassis: 24.8″
Product Weight:
- Seat w/ Hi-low chassis: 33 lbs.
- Seat w/ Easy chassis: 23.1 lbs.
(excluding push bar)
Seat Width:6.3″-10.2″
(distance between hip guides)
Seat Depth:7.5″-11.4″
(back support to back of knee)
Seat to Footplate:4.8″-10.6″
(sole of foot to back of knee)
Back Height:
- Sitting shoulder height: 12.6″-15″
- With shoulder support: 16.5″-18.9″
Back Angle Adjustment:
- Prone 10°
- Recline 25°
Chest Width:6.3″-8.75″
(distance between laterals)
Knee Width:3.5″
(maximum distance between pommel and side of seat)
Footplate:
- Plantarflexion: 10°
- Dorsiflexion: 10°
Tray Size:18.1″ x 22″
Tray Height Range:4.5″-6.7″
(seat to top of tray)

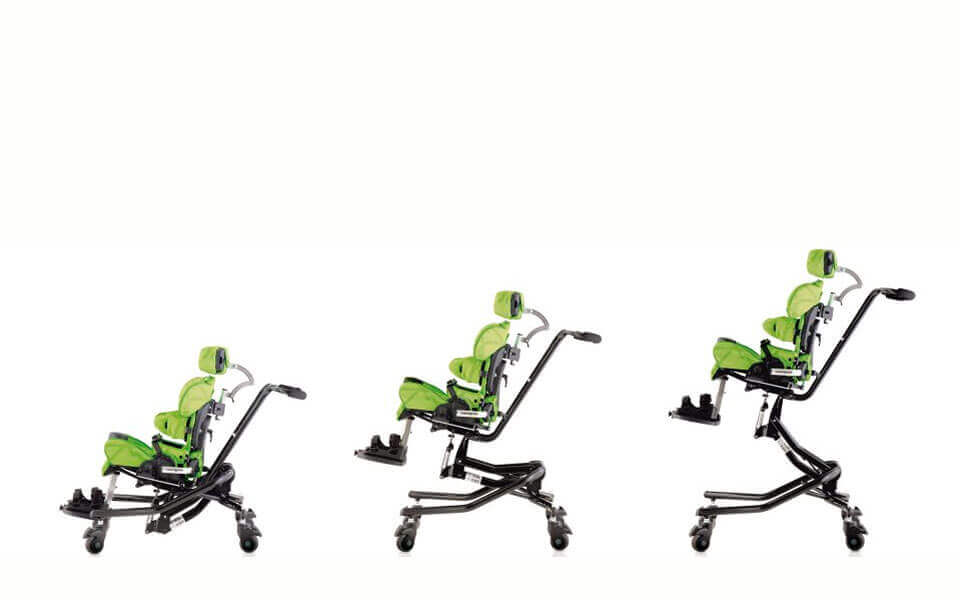

Tilt-in-Space:Hi-low chassis
- Prone: 10°
- Recline: 30°
Easy chassis
- Prone: 20°
- Recline: 20°
Recommended User Height:29.5″-43.3″
User Weight Capacity:48.4 lbs.
