Description

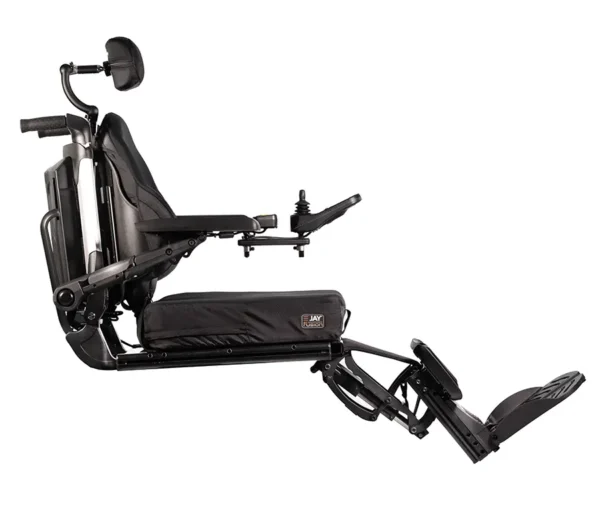

The QUICKIE Q700 M is available with four distinct seating systems: the highly featured SEDEO PRO ADVANCED, the versatile SEDEO PRO, the simple SEDEO LITE, and the comfortable Captain Seat.
| SEDEO PRO ADVANCED |
SEDEO PRO |
SEDEO LITE |
Captain Seat |
|
|---|---|---|---|---|
| Biometric Repositioning | ✔ | – | – | – |
| Memory Seating | ✔ | – | – | – |
| Pressure Relief Alert Reminder (PRAR) | ✔ | – | – | – |
| Cryo fluid (available only on JAY Syncra seating) | ✔ | ✔ | – | – |
| Power Recline w/ 7″ of Shear (165°) | ✔ | – | – | – |
| Power Recline w/ 4″ of Shear (150°) | – | ✔ | – | – |
| Manual Recline Option | – | ✔ | – | ✔ |
| Dual-Link Arm Supports | ✔ | ✔ | – | – |
| 30° Anterior Tilt | ✔ | – | – | – |
| Power 50° Center Gravity Tilt | ✔ | ✔ | ✔ | ✔ |
| Power Legrest | ✔ | ✔ | ✔ | ✔ |
| 12″ Elevate | ✔ | ✔ | ✔ | ✔ |
| C-Me® Seat Elevation | ✔ | ✔ | ✔ | – |
| Seat Width | 16″ – 22″ | 16″ – 26″ | 15″ – 20″ | 16″, 18″, 20″ |
| Seat Depth | 15″ – 20″ | 14″ – 22″ | 16″ – 22″ | 16″ – 22″ |
| Backrest Height | 22″ – 28″ | 22″ – 30″ | 18″ – 30″ | 25″ |
Dimensions
Product Width:
- Q700 M: 25″
- JAY Syncra Back: 16″, 18″, 20″, 22″
Product Length:36.5″
Product Height:JAY Syncra Cushion: 4″
Seat Width:
- SEDEO PRO ADVANCED: 16″ to 22″
- SEDEO PRO: 16″ to 26″
- SEDEO LITE: 15″ to 20″
- Captain Seat: 16″, 18″, 20″
- JAY Syncra Cushion: 16″ to 20″ & 22″
Seat Depth:
- SEDEO PRO ADVANCED: 15″ to 20″
- SEDEO PRO: 14″ to 22″
- SEDEO LITE: 16″ to 22″
- Captain Seat: 16″ to 22″
- JAY Syncra Cushion: 16″ to 20″ & 22″
Note: Back cushion can cause 2″ loss of effective depth.
Seat-to-Floor Height:16.5″ to 19″
Back Height:
- SEDEO PRO ADVANCED: 21″ to 28″
- SEDEO PRO: 21″ to 30″
- SEDEO LITE: 18″ to 30″
- Captain Seat: 25″
- JAY Syncra Back: 22″ to 30″, utilizing 16″, 18″, 20″, 22″ back shell heights
Turning Radius:23.5″
Ground Clearance:3″
Product Information
Model Number:EIPW25
HCPCS Code:No Power Seating Options
- Group 3 Standard Duty – K0848
- Group 3 Heavy Duty – K0850
- Group 4 Standard Duty – K0868
Single Power Seating Options
- Group 3 Standard Duty – K0856
- Group 3 Heavy Duty – K0858
- Group 4 Standard Duty – K0877
Multi Power Seating Options
- Group 3 Standard Duty – K0861
- Group 3 Heavy Duty – K0862
- Group 4 Standard Duty – K0884
Captain Seat
- K0849
Warranty:Lifetime Limited
Performance/Weights
Max. Range:Up to 18 miles
(w/Group 24 batteries and 6 mph motors)
Max. Speed:
- 6 mph (standard)
- 5 mph (optional)
- 8 mph (optional)
Battery Size:
- Group 34
- Group 24
Drive Wheel Position:Mid
Seat Memory Functions:
- Seated
- Pressure Relief
- Supine
- Feet Above Heart
- Transfer
- C-Me
Wheel Options:14″ drive wheels; 6″ casters
Transit:ISO 7176-19:2008 Transit Approved
User Weight Capacity:
- 300 lbs
- HD: 450 lbs
Product Weight:SEDEO PRO, with batteries
- No Power Seating Options: Starting at 328 lbs.
- Single Power Seating Options: Starting at 352 lbs.
- Multi Power Options: Starting at 366 lbs.
