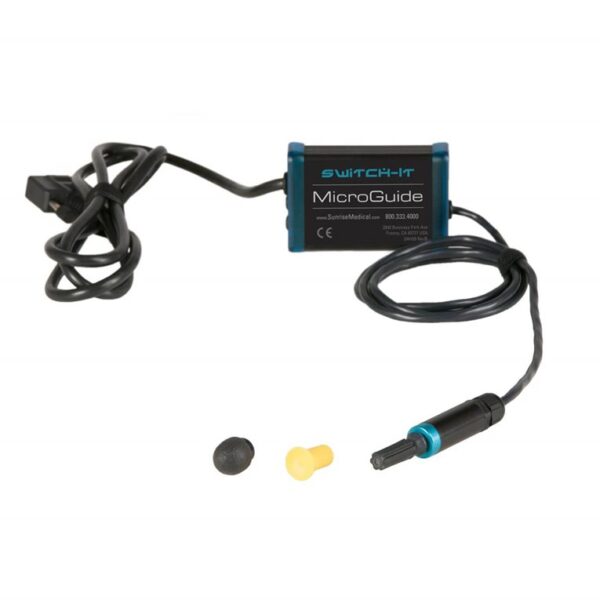

MicroGuide

Light-touch proportional control

The MicroGuide is a light-touch proportional power wheelchair drive control: the farther you push, the faster the chair will go. The device gives the user the ability to operate their wheelchair with 360° of control as well as the full range of the wheelchair’s drive parameters (speed, acceleration, etc.).

Deflection-based technology offers physical joystick throw for users who prefer the feedback from movement. Metal construction offers a significant durability advantage. The MicroGuide is ideal for clients who require the sensitivity of a light-touch drive control as well as the feedback of joystick displacement.

Add to Wishlist
Add to Wishlist
Categories: , Brand: ,

Description

Dimensions
Dimensions:

  • Diameter Housing: 0.625″ (15.87 mm)
  • Height Overall: 3.15″ (80 mm)
  • Stem Diameter: 0.062″ (1.57 mm)
Product Information
Model Number:MG
HCPCS Code:E2312
Performance/Weights
Alternative Control Type:Proportional/Analog
Activation Type:Displacement
Activating Force:~40g
Feedback:Displacement/Movement of Joystick Knob
Connector:DB9 Connector to Wheelchair Omni or Enhanced Display
Compatibility:

  • Penny and Giles R-Net (Omni Display from wheelchair manufacturer is required)
  • Quantum Q-Logic electronics (Enhanced Display from wheelchair manufacturer is required)
  • Not compatible with Invacare electronics
Mode Switch Inputs:

  • Mechanical switches (i.e., Egg Switch, MicroLite, Piko) into Omni or Enhanced Display
  • Fiber optic systems (1FBOS, 2FBOS)
  • Flex switch proximity sensor (SJX2 required)

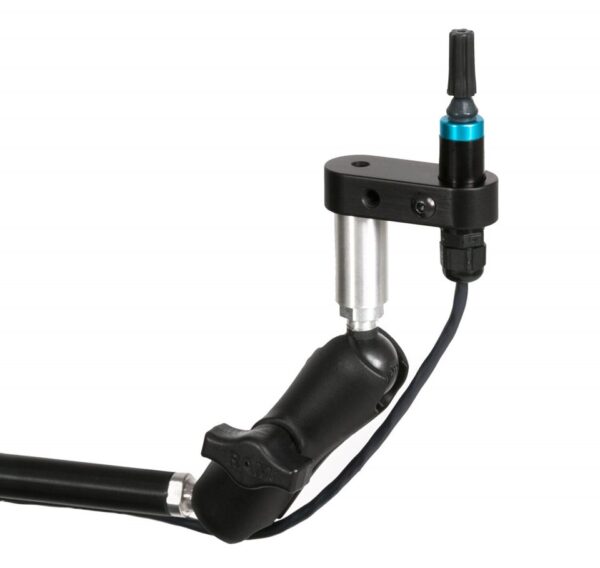

Mounting Options:

  • Armrest Mount
  • Midline Mount

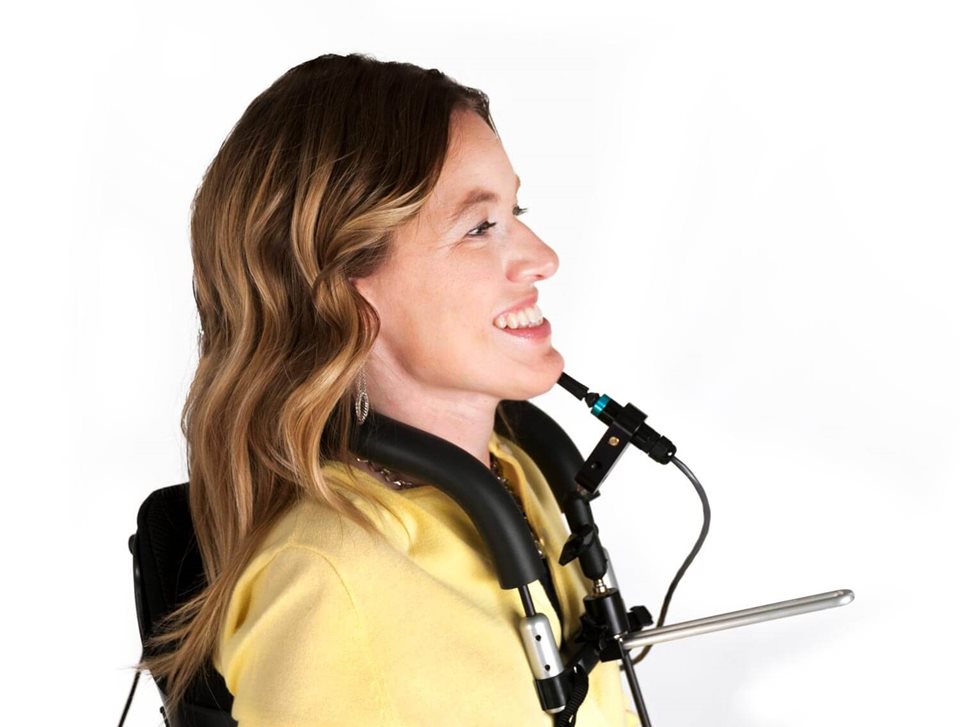

  • BDN3 Chin Mount

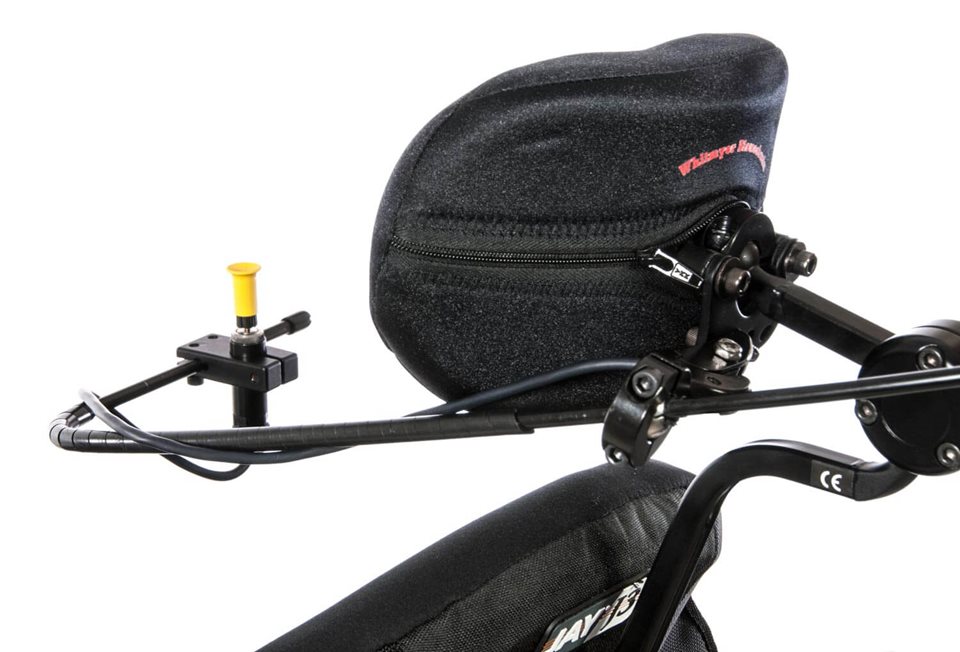

  • Swing-Away Chin Boom Mount

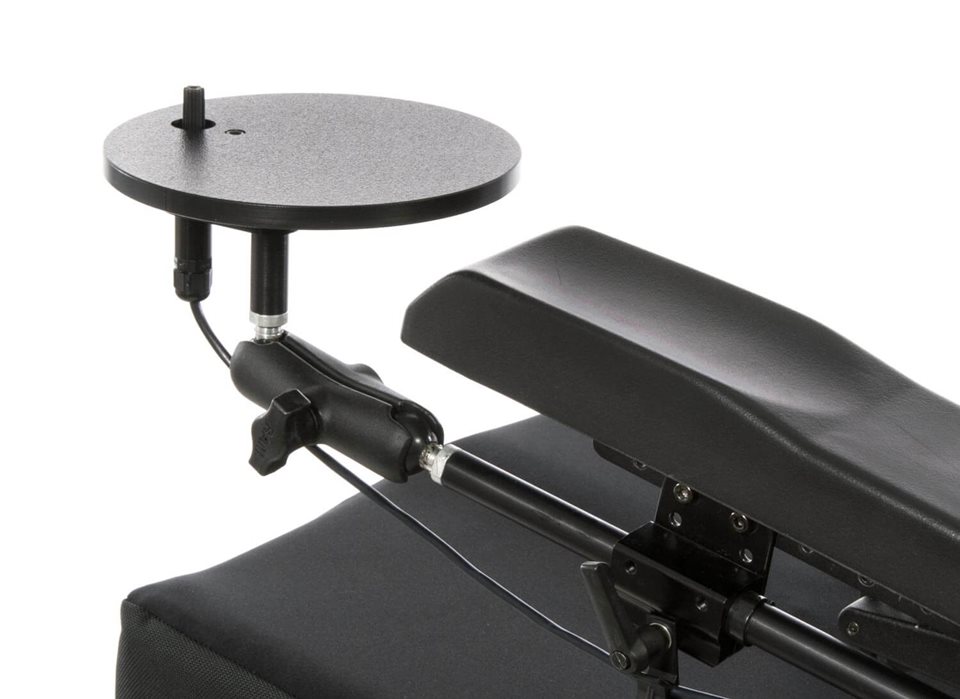

  • BulletTray and SpaceDisk Hand Trays Active Controls Mount
  • Personalized Mounting Available Upon Request
