Description
System Features

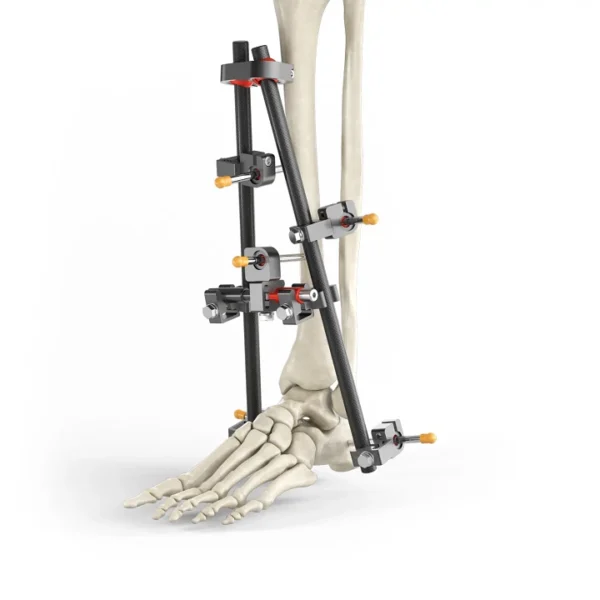

The EF1 Pin to Bar system offers 360˚ angulation and various configurations:
- Bar-to-Bar Clamp
- Double Angular Clamp
- Bar to Collet Clamp
- Bar to Angular Correction Clamp

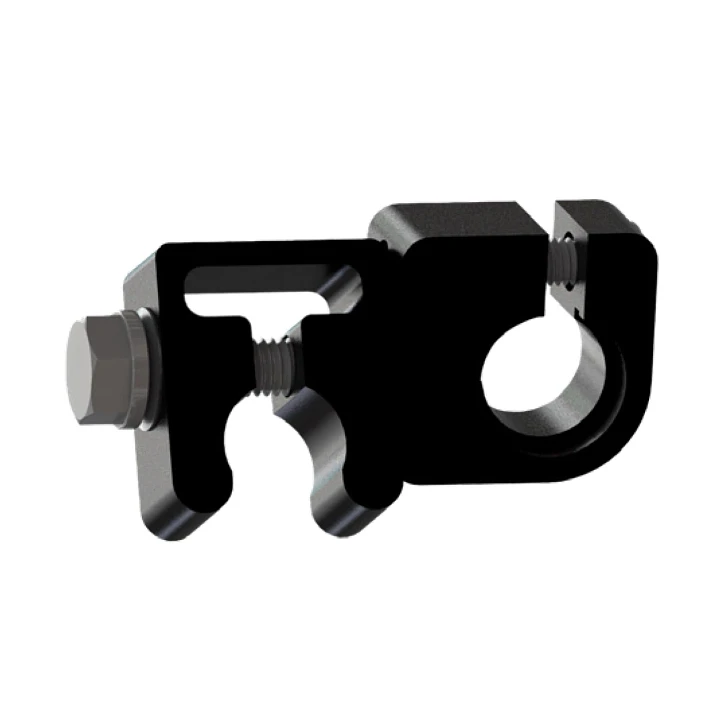

Bar-to-Bar Clamp

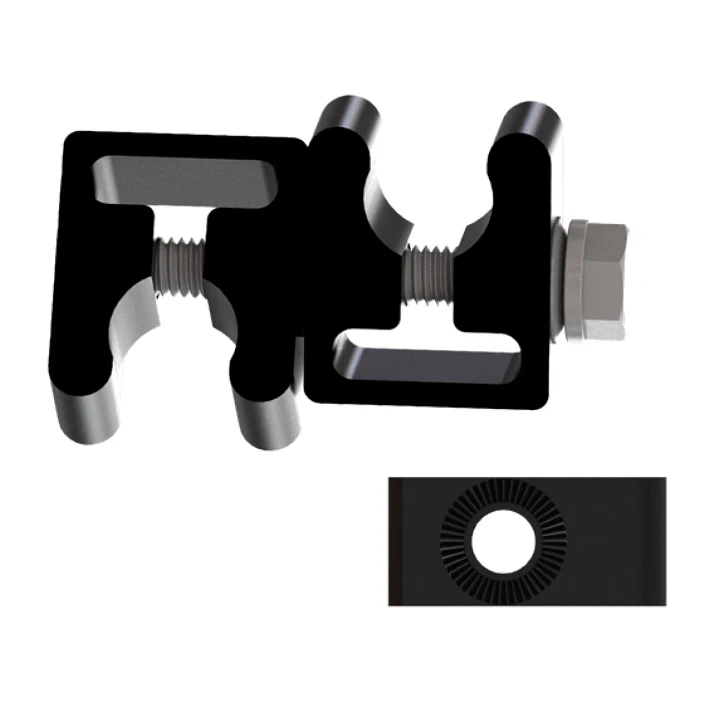

Bar to Collet Clamp
The Bar to Collet Clamp is compatible with all EF1 External Fixation frames, accommodating various pin collet, rail, and spacer sizes. It securely clamps onto spacers or struts and accepts 3 mm, 4 mm, 5 mm, and 6 mm pins. Its sunburst design allows 360˚ rotation for secure locking in any position.
High Angulation
The system enables surgeons to bridge the knee joint, providing 70˚ of motion across its range.

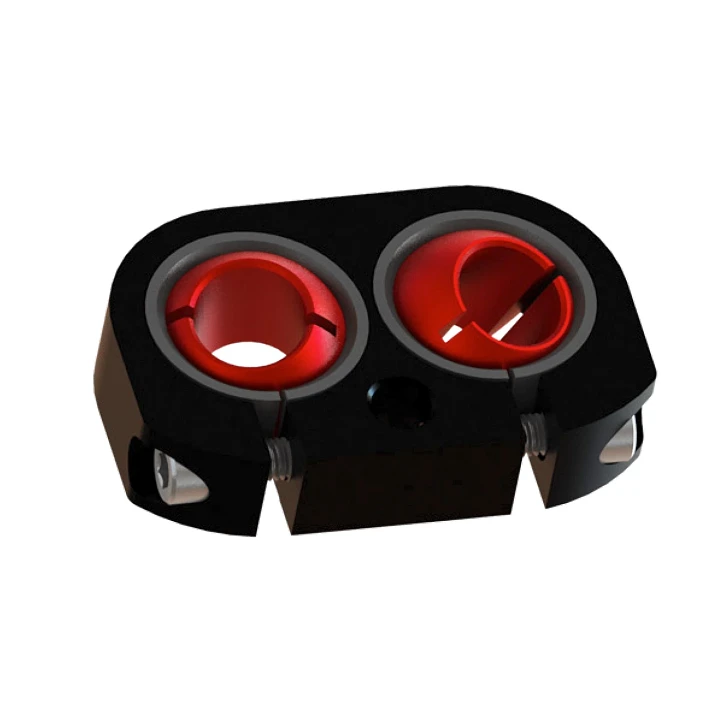

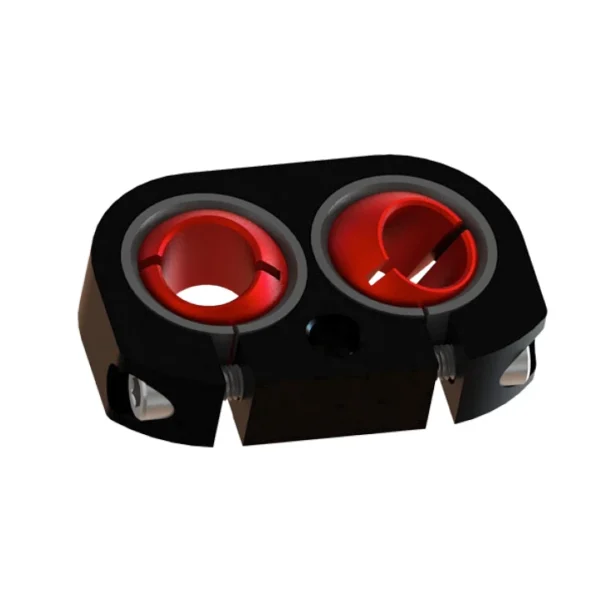

Double Angle Correction Clamp

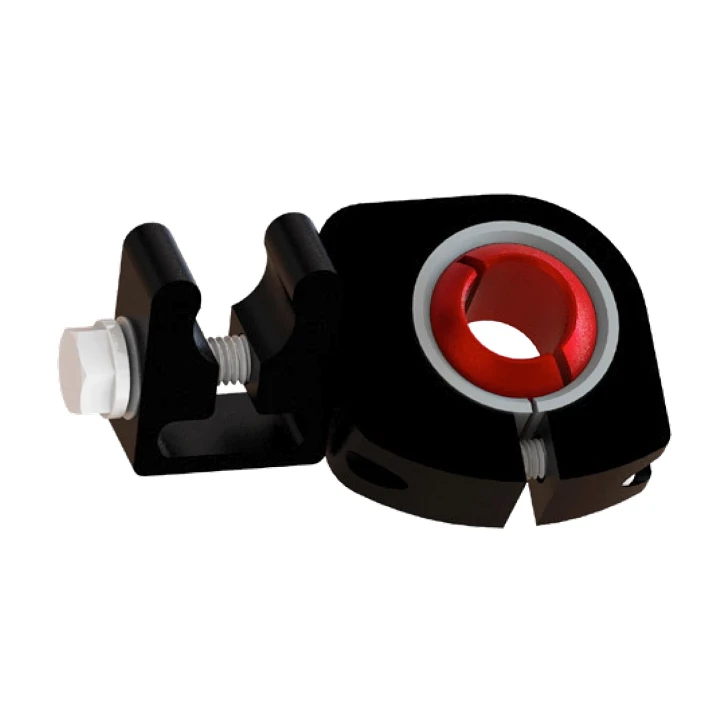

Bar to Angular Correction Clamp
Angulation and Rotation
Featuring a sunburst design, the Bar to Angular Correction Clamp rotates 360˚ and locks firmly in place. Similar to the Bar to Collet Clamp, it accommodates a broad range of pin collet, pin, and spacer sizes. When used with a collet, the system provides both collet rotation and ball angulation, maximizing its flexibility for precise angular adjustments.
