Description

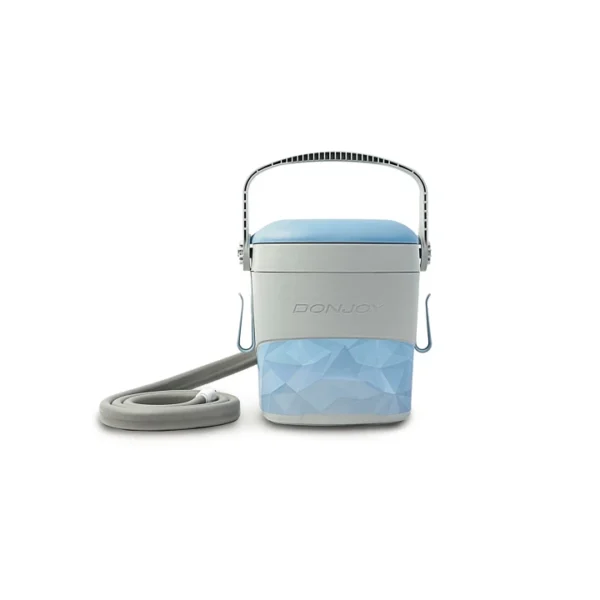

ICEMAN with dual pump recirculation technology. The DonJoy® IceMan® features a recirculation system that allows water warmed after flowing through the cold pad to be preserved and remixed with cooler ice water at a constant flow rate, providing consistent cool water distribution throughout the cold pad.
COMPETITORS Other versions restrict or pinch water flow to the cold pad, causing variable flow rates and inconsistent cold pad temperatures.
WARNING!
THIS DEVICE CAN BE COLD ENOUGH TO CAUSE SERIOUS INJURY.
Please read and understand all warnings and instructions for use before using the device. DO NOT use this device without a prescription and direction from a physician.
STEPS:
- Unlock lid by rotating the handle forward.
- Add ice to fill line inside the device.
- Add cold water to fill line.
- With handle in forward position place lid on device. Press lid down while rotating handle up and back to latch closed
- Connect the IceMan CLASSIC3 hose to the cold pad hose. To ensure a reliable connection, “snap” or “click” hoses together into place so that the fit is tight and snug.
- To turn device on, insert cord into the connection port on the back of the device and plug the power supply into the wall outlet.
Ordering Information
DonJoy® IceMan CLASSIC3®
| Description | Part Number |
|---|---|
| IceMan CLASSIC3 Cold Therapy Unit | 11-0494 |
| IceMan CLASSIC3 w/ Universal Cold Pad, S, RH | 11-1421 |
| IceMan CLASSIC3 w/ Universal Wrap-On Pad, NS, RH | 11-1422 |
| IceMan CLASSIC3 w/ Universal Cold Pad, NS, RH | 11-1423 |
| IceMan CLASSIC3 w/ Universal Wrap-On Pad, NS, EH | 11-1424 |
| IceMan CLASSIC3 w/Universal Cold Pad , S, EH | 11-1425 |
| IceMan CLASSIC3 w/ Shoulder Wrap-On Pad, NS, EH | 11-9098 |
| IceMan CLASSIC3 w/ McGuire Knee Wrap-On Pad, NS, RH | 11-9099 |
| IceMan CLASSIC3 Power Supply Cord | 25-4041 |
Cold Pads
| Description (Sterile) | Part Number |
|---|---|
| Description (Non-Sterile) | Part Number |
| Universal Cold Pad, S, RH (10.85”x11.34”) | 11-0801-9-00000 |
| Universal Cold Pad, S, EH (10.85”x11.34”) | 11-0802-9-00000 |
| Universal Cold Pad XL, S, EH (12”x11.34”) | 11-0804-9-00000 |
| Rectangle Cold Pad S, S, RH (4.81”x10.75”) | 11-0817-9-00000 |
| Rectangle Cold Pad XL, S, EH (9.76”x13.75”) | 11-0813-9-00000 |
| Wrist/Hand Cold Pad, S, RH (2.9”x4.2”) | 11-1269-9-00000 |
| Ankle Cold Pad, S, RH (12.26”x8.28”) | 11-0815-9-00000 |
| Universal Cold Pad, NS, RH (10.85”x11.34”) | 11-0675-9-00000 |
| Universal Cold Pad, NS, EH (10.85”x11.34”) | 11-0676-9-00000 |
| Universal Cold Pad XL, NS, EH (12”x11.34”) | 11-0678-9-00000 |
Wrap-On Pads
| Description (Non-Sterile) | Part Number |
|---|---|
| Universal Wrap-On Pad, NS, RH (10.85” x 11.34”) | 11-0679-9-00000 |
| Universal Wrap-On Pad, NS, EH (10.85” x 11.34”) | 11-0680-9-00000 |
| Universal Wrap-On XL, NS, RH (12”x11.34”) | 11-0681-9-00000 |
| Universal Wrap-On Pad XL, NS, EH (12”x11.34”) | 11-0682-9-00000 |
| McGuire Knee Wrap-On Pad, NS, RH (10.85”x11.34”) | 11-1268-9-00000 |
| Shoulder Wrap-On Pad, Small, NS, EH (12.75”x19”x12.25”) | 11-1397-9-00000 |
| Shoulder Wrap-On Pad, NS, EH (14”x23”x12.5”) | 11-1334-9-00000 |
| Ankle Wrap-On Pad, NS, RH | 11-1522 |
| Fore-Foot Wrap-On Pad, NS, RH | 11-1521 |
| Hip-Left Wrap-On Pad, NS, RH | 11-9112 |
| Hip-Right Wrap-On Pad, NS, RH | 11-9111 |
Sterile Dressings
| Description | Part Number |
|---|---|
| Universal Sterile Dressing | 11-0822-9-00000 |
| Universal XL Sterile Dressing | 11-0823-9-00000 |
| Rectangle XL Sterile Dressing | 11-0820-9-00000 |
| Shoulder XL Sterile Dressing | 11-1360-9-00000 |
S = Sterile
NS = Non-Sterile
RH = Regular Hose (6.5”)
EH = Extended Hose (15”)
